Description

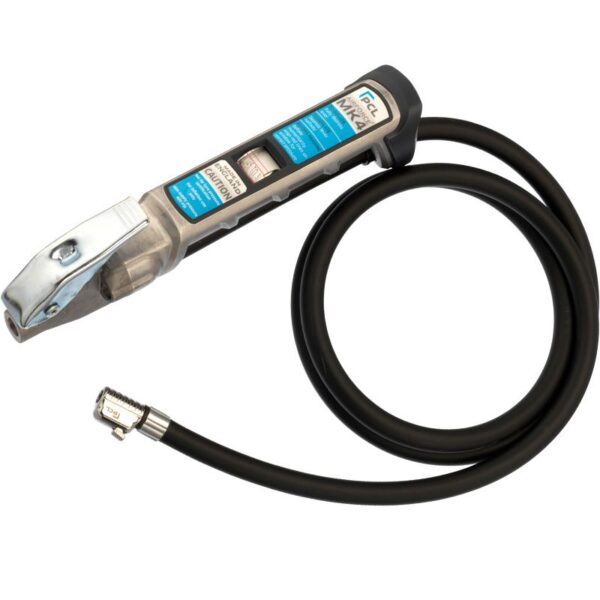

As the world’s leading linear gauge, the AIRFORCE® MK4 takes performance to a new level, offering even greater ease of use with a 20% larger screen and clearer to read scale. Meanwhile PCL’s leading high performance two-stage valve design ensures accuracy and longer life compared to competitors’ single-stage mechanisms, where filters are used in an attempt to protect the product. This can result in over 50% reduction in product life, with filters slowing down inflation rates, wasting valuable technician time.
Tests show the ‘Made in Sheffield’ AIRFORCE® MK4 can cover more than ten times as many cycles as its main contender, making it the product of choice for users who prefer a linear tool.
- New Viewing Window – Larger window gives 20% greater field of viewing
- Lighter Weight – Gauge body weighs 923g, less work strain and easier for repetitive use
- Biomorphic Shape – Ergonomic, easier to use and less prone to damage when dropped
- New Valve Mechanism – Simplified 2 stage mechanism design prevents user having to “push” against full line pressure on deflate preventing fatigue
- Improved Piston & Seal Design – New design, less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy
- Accuracy Standards – Tested to over 400,000 cycles at 100% accuracy
- Accuracy compliant with BS EN 12645:2014
| Shipping Weight (kg) | 1.242 |
|---|---|
| Old Skus | ALG3H061 |
| EAN | 5014875138893 |
| Brand | PCL |
| Display Type | Linear |
| Hose Length | 2.7 m / 9 ft |
| Tyre Valve Connection | Single Clip-on |
| Calibration | 0-138 psi / 0-9.6 bar |
| Display Resolution | 2 psi / 0.1 bar |
| Accuracy | BS EN 12645:2014 |
| Maximum Inlet Pressure | 15 bar / 220 psi |
| Flow Rate | 500 l/min @ 13 bar supply |
| Temperature Range | -10°C to 60°C |
| Inlet / Outlet Connection | Rp 1/4 |
